SPECIFICATIONS

FRAMESET

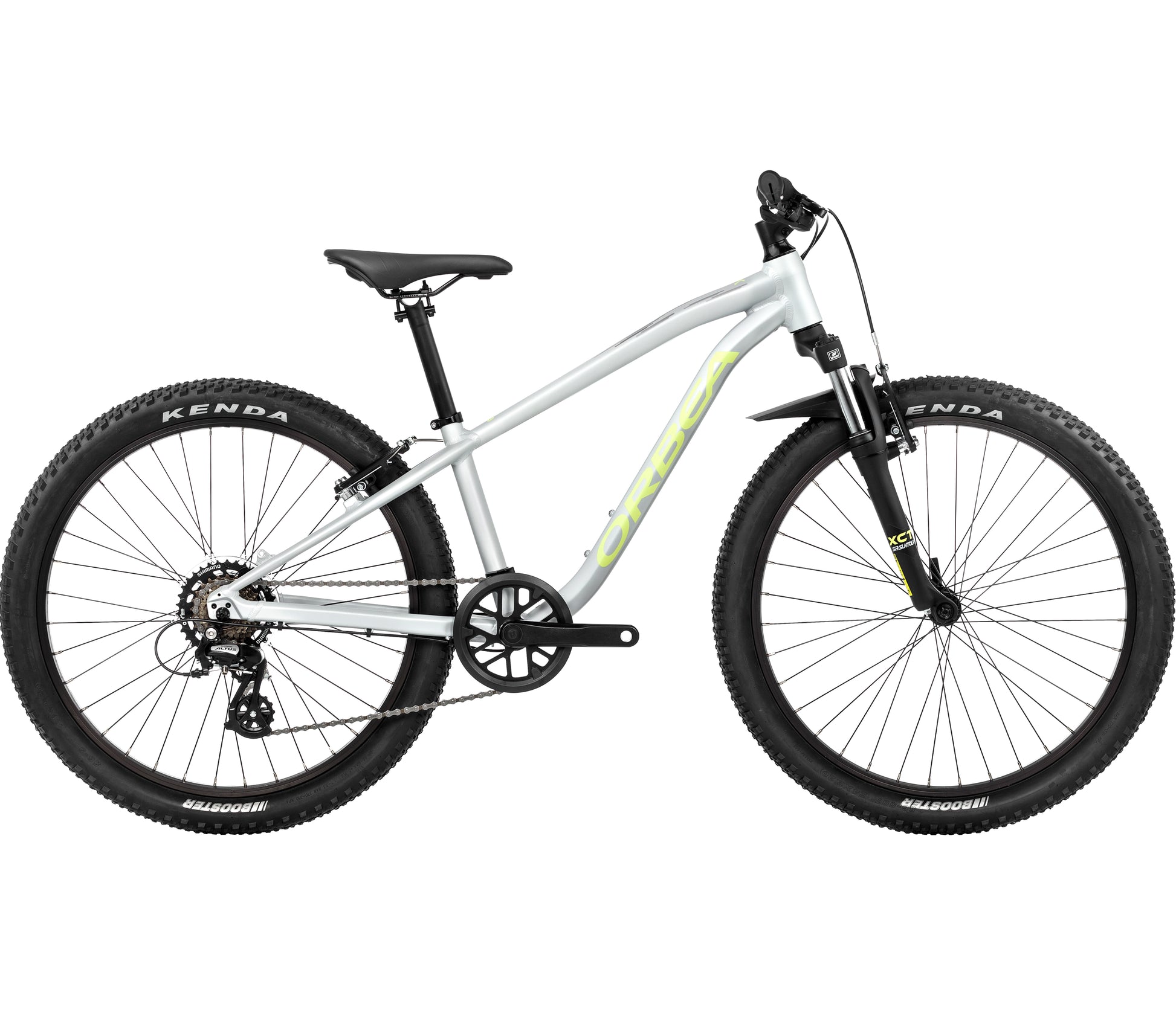

Frame: Orbea MX 24 6061 Aluminum 2021, 135x9 QR, V-Brake + IS Disc Mount, 27.2 Seat Post, Internal Cable Routing, Central kickstand compatible, removable hanger, Fender and Carrier ready.

Fork: SR Suntour XCT-JR w/Preload adjuster Coil 50mm QR

Direction: VP-Z104PD 1-1/8" Semi-Cartridge

DRIVETRAIN

Crankset: Extra light 36t, 152mm, w/ Chain guard

Shifters: Shimano SL-M315

Cassette: Shimano TZ31 14-34t 7-Speed

Rear derailleur: Shimano Altus M310

Chain: KMC Z7 GYBR

COCKPIT

Handlebar: Orbea Alu integrated cockpit 540mm

BRAKES

Brake levers: Junior V-Brake lever, alloy body and alloy lever, with reach adjustment

Brakes: Junior alloy V-brake

WHEELS

Wheels: Alloy, 24", 36H

Tyres: Kenda Booster K1277 24x2.20" 30TPI

ACCESSORIES

Pedals: VP-229 Black with reflectors

Mudguard: Orbea Custom fork

COMPONENTS

Seatpost: Alloy 27.2x300mm Offset 0

Saddle: DDK D2405 256x138mm
