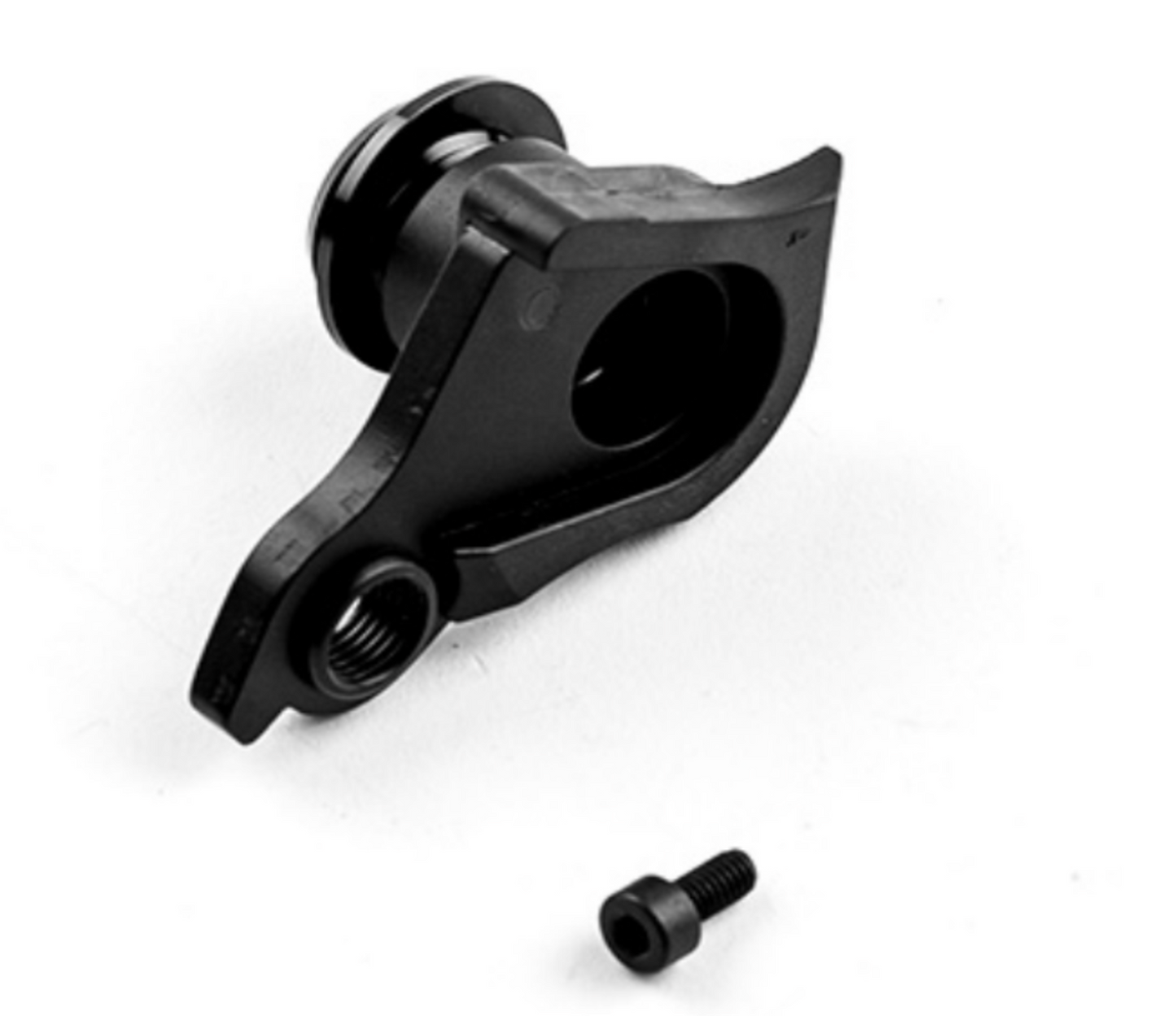

Orbea (X004) Rear Derailleur Hanger No.54 Sram UDH x12 Concentric Pivot
Orbea (X004) Rear Derailleur Hanger No.54 Sram UDH x12 Concentric Pivot
DESCRIPTION
REAR DERAILLEUR HANGER SRAM UDH FOR 12MM REAR THRU-AXLES
INCLUDES
Hanger nut.
Dropout fixing bolt (the bolt is not used on all frames).
AXLE THREAD PITCH
1.0
MODEL COMPATIBILITY
The HT model is used on Orbea MTB hardtail (Alma) and non-Concentric Pivot full suspension (Oiz) models.
The FS model is used on Orbea MTB full suspension Concentric Pivot frames.
HANGER SPECIFICATIONS
The Sram UDH rear derailleur hanger is the same in both options (HT and FS). The only difference is the integrated washer on the external nut. On FS models, this washer has a 30mm diameter to cover the axle pivot point bearing.
The HT option is compatible with Orbea MTB full suspension Concentric Pivot frames, though the integrated washer may not completely cover the pivot point bearing. If using the HT option on full suspension frames, the original external nut can be reused if only the derailleur hanger is being replaced.
FINDING THE RIGHT COMPONENT
To find the correct component for your bicycle, enter your barcode number in the designated field or consult your model's Blue Paper technical manual, using the browser to locate the article code.
ASSEMBLY INSTRUCTIONS
Refer to the bicycle or component technical manual in the support section of our website for complete assembly instructions.
