Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
1
/
of
1

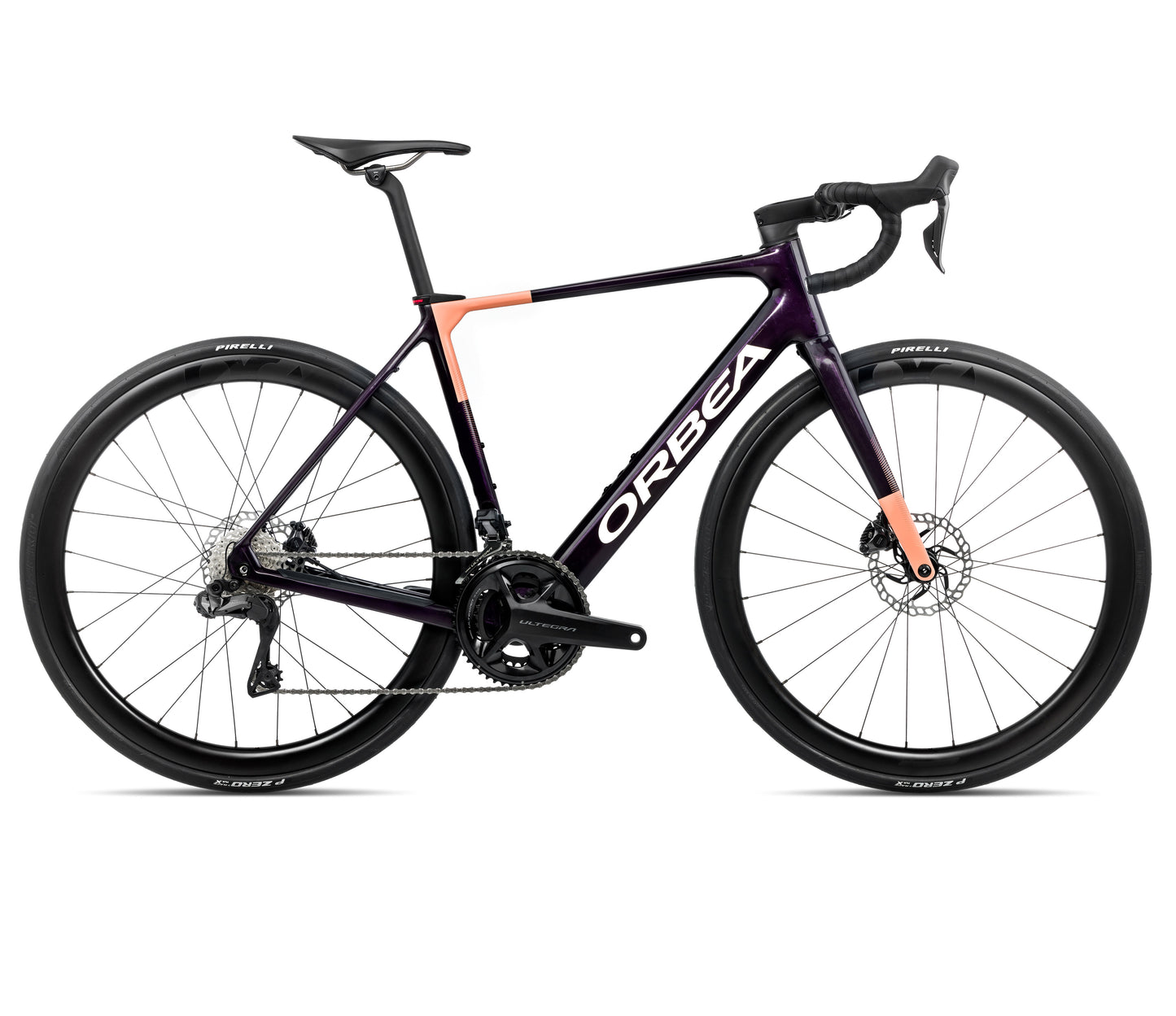

Orbea (T686) Gain M20i 20mph
Orbea (T686) Gain M20i 20mph
Regular price
32,495.00
Regular price
Sale price
32,495.00
Unit price
/
per
Tax included.
Out of stock
Couldn't load pickup availability
Overview
Rider and bike working in perfect synergy, you’re breathing hard and your heart is pumping but you are in control and having fun
Technologies
Joyful Performance
Rider and bike working in perfect synergy, you’re breathing hard and your heart is pumping but you are in control and having fun.
MAHLE X20 MOTOR
One of the lightest, most compact e-bike drive system on the market. 50Nm of nearly silent, frictionless assistance gives more than enough power for even the toughest climbs.
350WH DOWNTUBE
You can pretty much forget about the battery capacity unless you plan on climbing
more than 4000m.
OMR CARBON
OMR frames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios.
INTEGRATED LIGHTING
Gain is safer and more functional with head and tail lamps that announce your presence day and night. The built-in light sensor automatically switches Gain's inbuilt lights on and off.
Specifications
Frameset
Frame
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Steerer tube
FSA 1-1/2" Integrated Aluminium Cup
Ebike
Battery
Mahle iX350 36V 353Wh
RANGE EXTENDER
N/A
Motor
Mahle motor hub X20, ALC
Display
Mahle Pulsar One monochrome ANT+ LEV
CHARGER
Mahle Active Charger up to 4A
Remote
Mahle ONE Head Unit (BT/ANT+)
Remote2
Mahle Handlebar Dual eShifter
Drivetrain
Crankset
Shimano Ultegra R8100 34x50t
Shifters
Shimano ST-8170
Cassette
Shimano Ultegra R8100 11-30t 12-Speed
Rear derailleur
Shimano Ultegra Di2 R8150
Front derailleur
Shimano Ultegra Di2 R8150
Chain
Shimano M8100
Cockpit
Handlebar
OC Road Performance RP11-R Carbon, Rise 15, Reach 70, Drop 125
Stem
OC Road Performance RP10, -8º
Brakes
Brakes
Shimano R8170 Hydraulic Disc
Brakes Configuration
N/A
Wheels
Wheels
Carbon 42, Tubeless, 21c
Tyres
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite
Components
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Vento Antares R3 Kium Rail 140mm
Accessories
Front light
Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
Rear light
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
Handlebar Tape
Orbea Anti-Slippery/Shock Proof
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
