Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
1
/
of
2

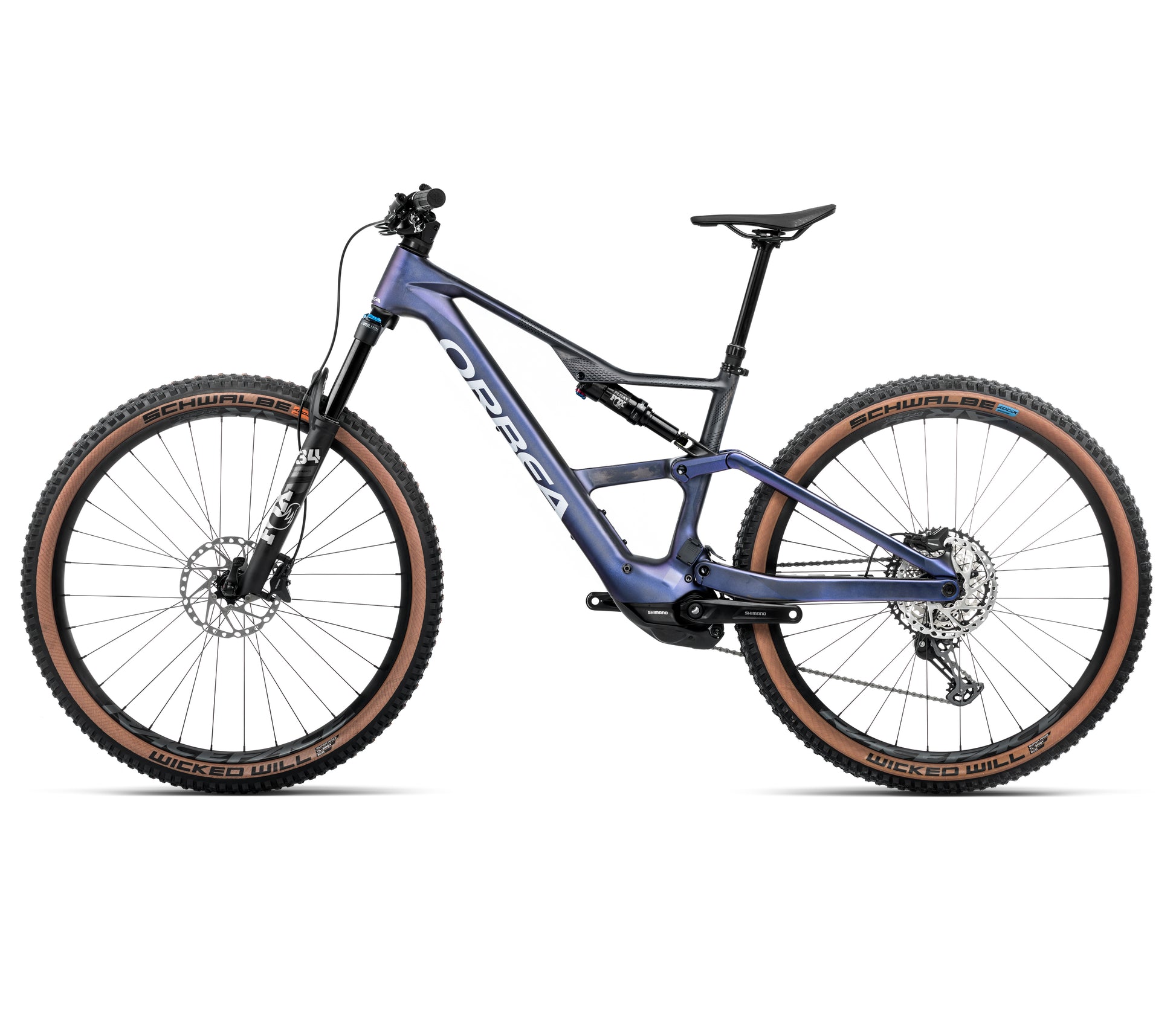

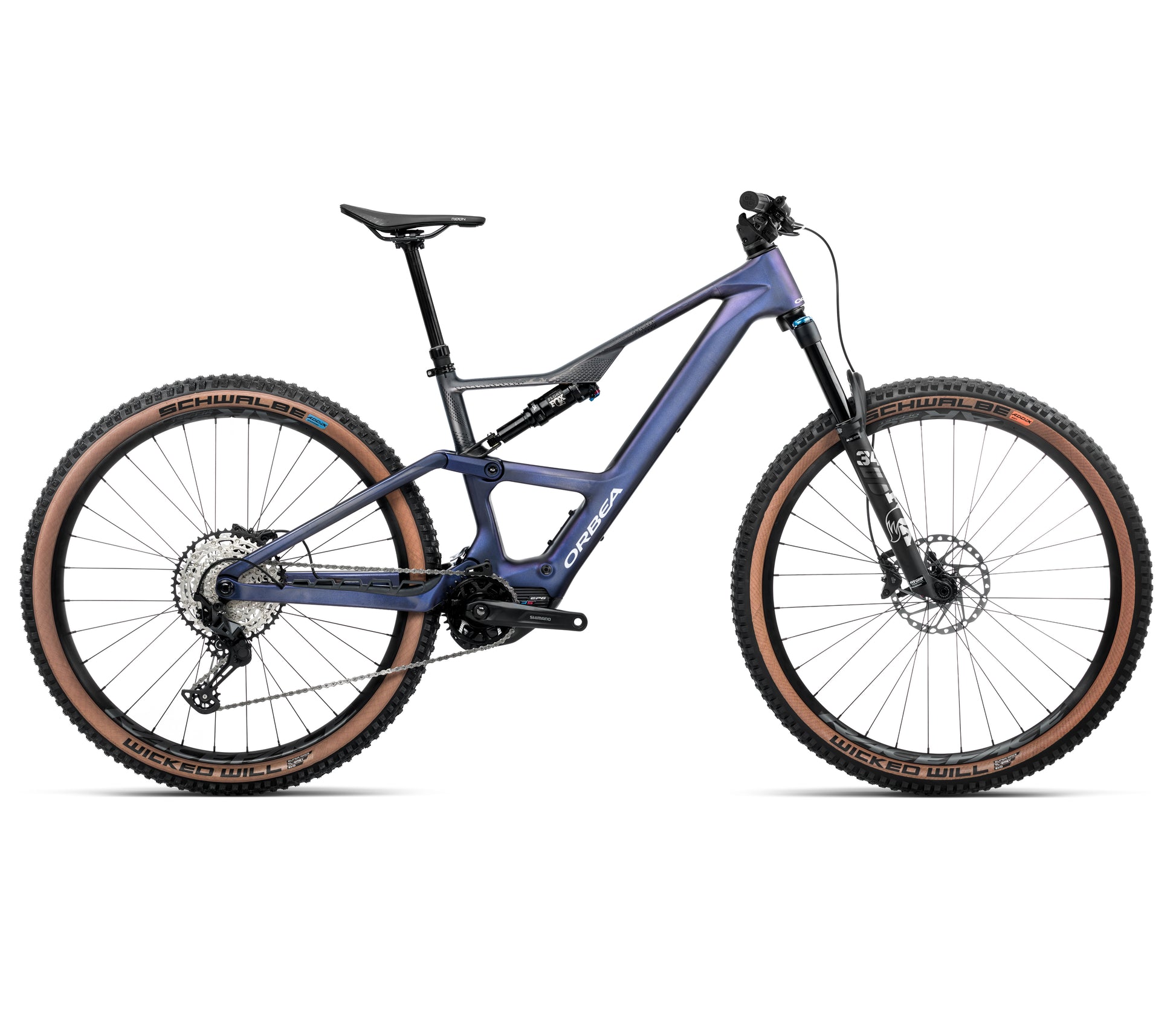

Orbea (S330) Rise SL M20 420w
Orbea (S330) Rise SL M20 420w
Regular price
23,996.00
Regular price
29,995.00
Sale price
23,996.00
Unit price
/
per
Tax included.
Out of stock
Couldn't load pickup availability
FInd flow in every adventure. Rise SL offers 140mm of efficient suspension and a fast trail geometry giving a nimble, fun ride. Our 420Wh battery comes as standard, or our 630Wh battery is an option. The Shimano EP motor has our latest RS GEN2 MC firmware, giving the most natural ride.
SPECIFICATIONS
Frameset
Frame
Shock
Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
Fork
Fox 34 Float Performance 140 Grip 3-Pos QR15x110
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Orbea Internal 420Wh
RANGE EXTENDER
N/A
Motor
Shimano EP600 RS Gen2 MC
Display
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote
EN600-L
Drivetrain
Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank
Shimano Steps EM600
Shifters
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Rear derailleur
Shimano SLX M7100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
Orbea eBike chainguide
Cockpit
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Rotors
Shimano RT64 Rotors 180mm front / 180mm rear
Brakes Configuration
N/A
Wheels
Wheels
Race Face AR 30c Tubeless Ready
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Components
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Fizik Terra Ridon X5 145mm
Grips
OC Lock On
Accessories
Lights
N/A
Tools
N/A
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
