Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.

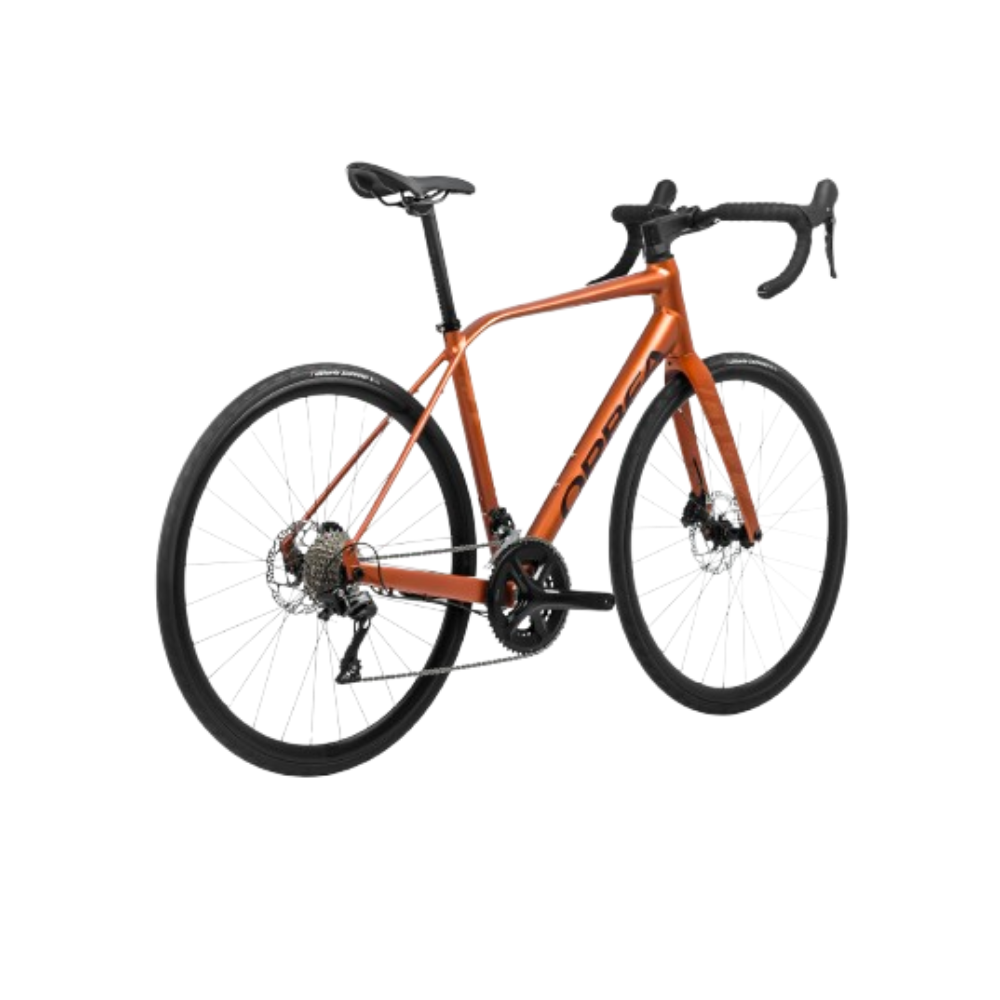

Orbea (R103) Avant H30
Orbea (R103) Avant H30
Specifications
Frameset
Orbea carbon 2021, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout
Acros Alloy 1-1/2" Internal Cable Routing
Drivetrain
Shimano RS520 34x50t
Shimano R7120
Shimano 105 R7100 11-34t 12-Speed
Shimano 105 R7100
Shimano 105 R7100
Shimano M6100
Cockpit
OC Road Perfornace RP31-R, Rise 15, Reach 70, Drop 125
OC Road Performance RP21, -6º
Brakes
Shimano R7170 Hydraulic Disc
Wheels
Alloy, Tubeless, 700c, 19c, 28H
Vittoria Zafiro V Rigid bead 700x28c
Orbea Thru Axle 12x100mm M12x2 P1 Solid
Orbea Thru Axle 12x142mm M12x2 P1 Solid
Components
Alloy, 27.2mm, Setback 20
Fizik Aliante R5
Accessories
Orbea Eva
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Size Guide
Size | Height (cm) |
47 | 155-160 |
49 | 160-166 |
51 | 167-172 |
53 | 173-179 |
55 | 180-185 |
57 | 186-191 |
60 | 192-207 |
