DESCRIPTION

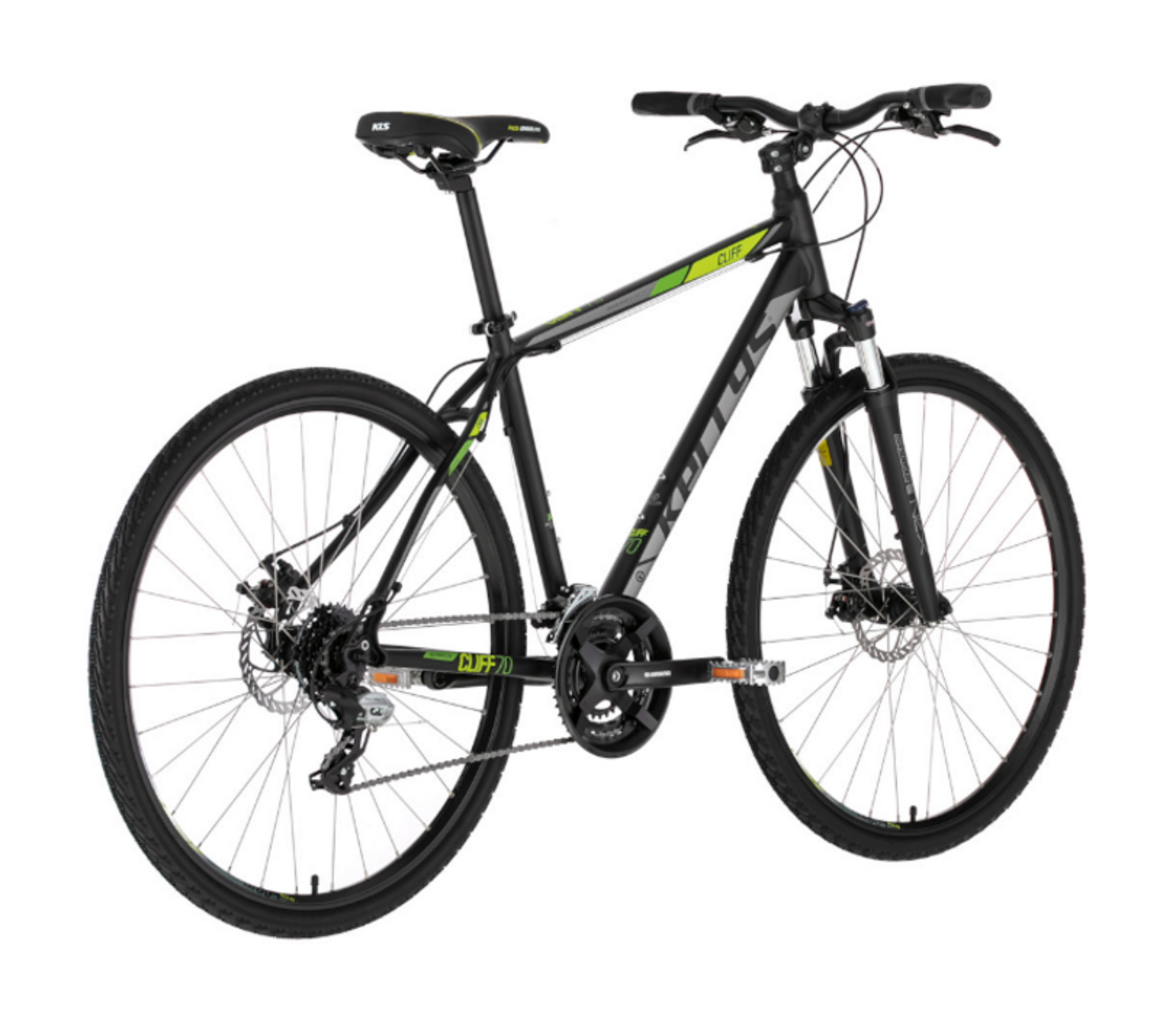

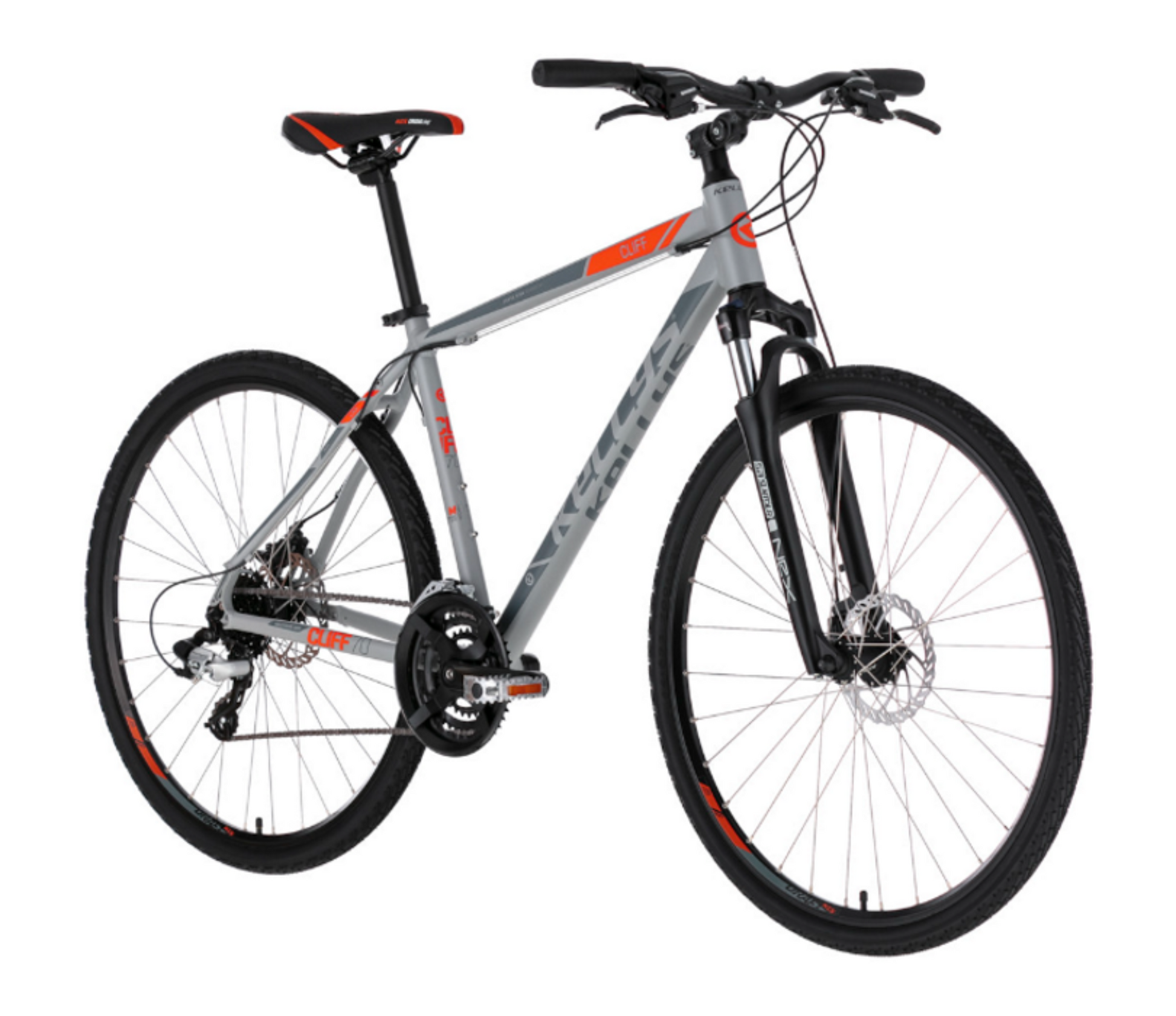

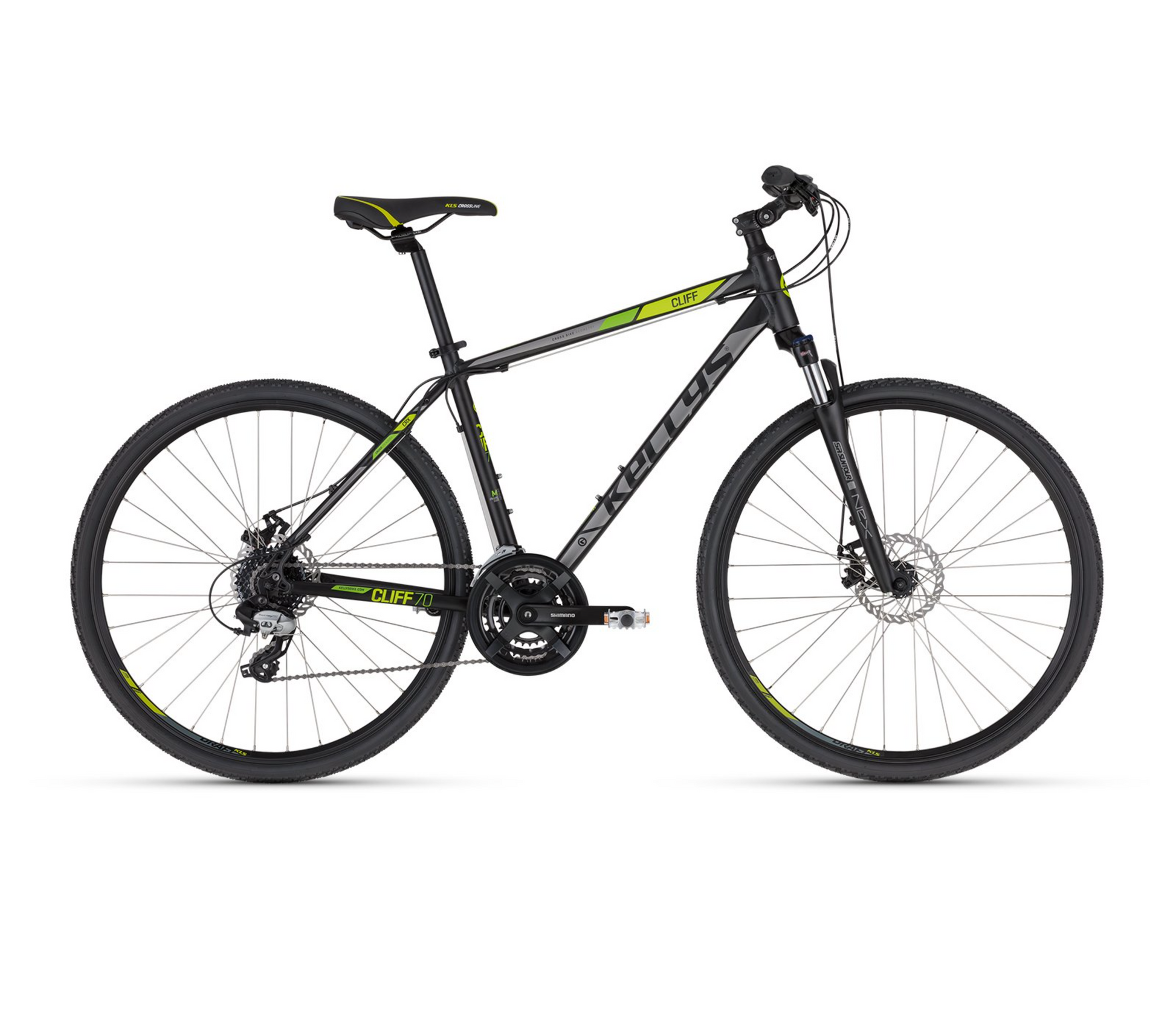

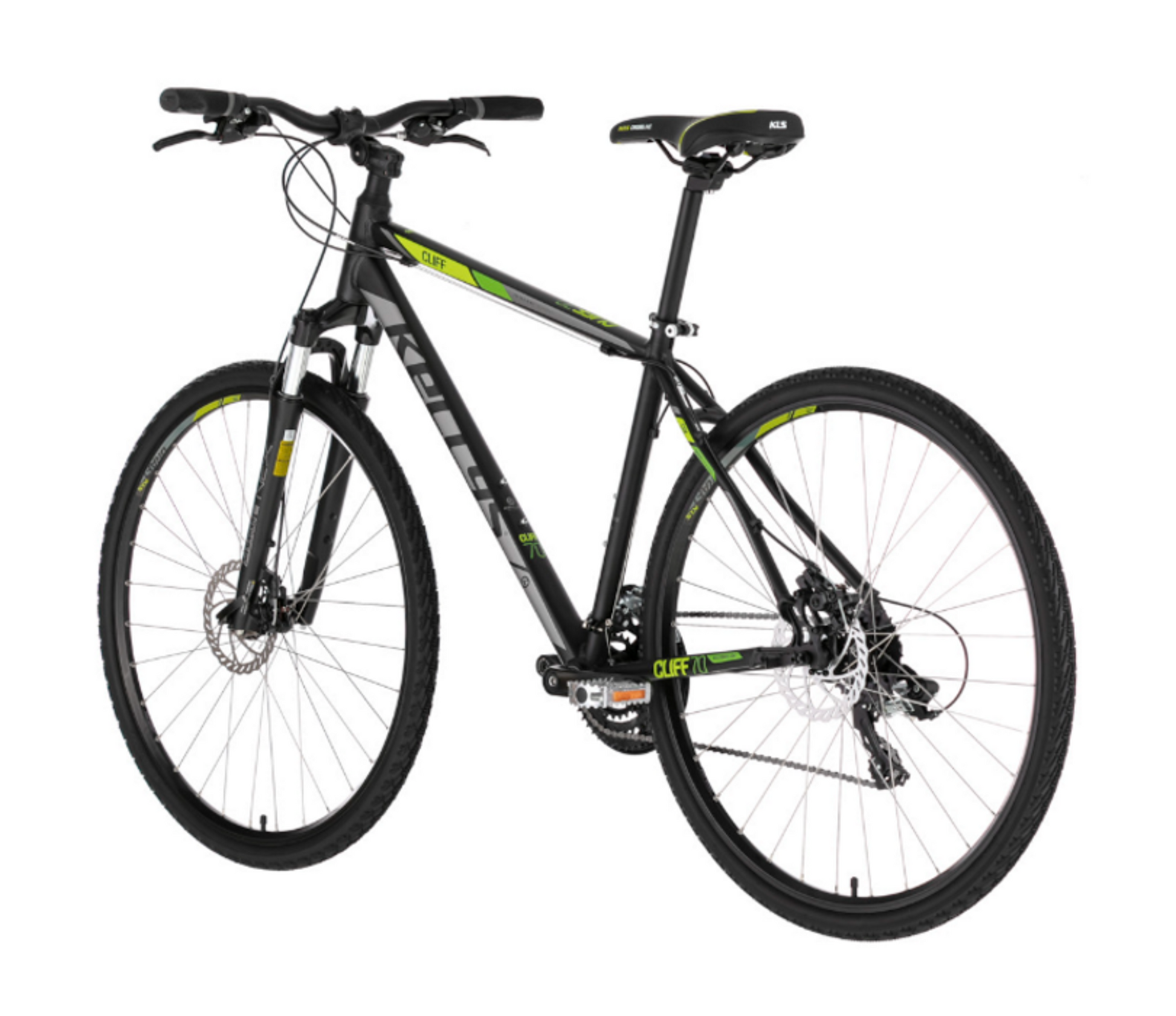

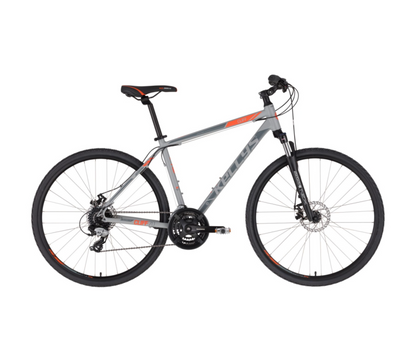

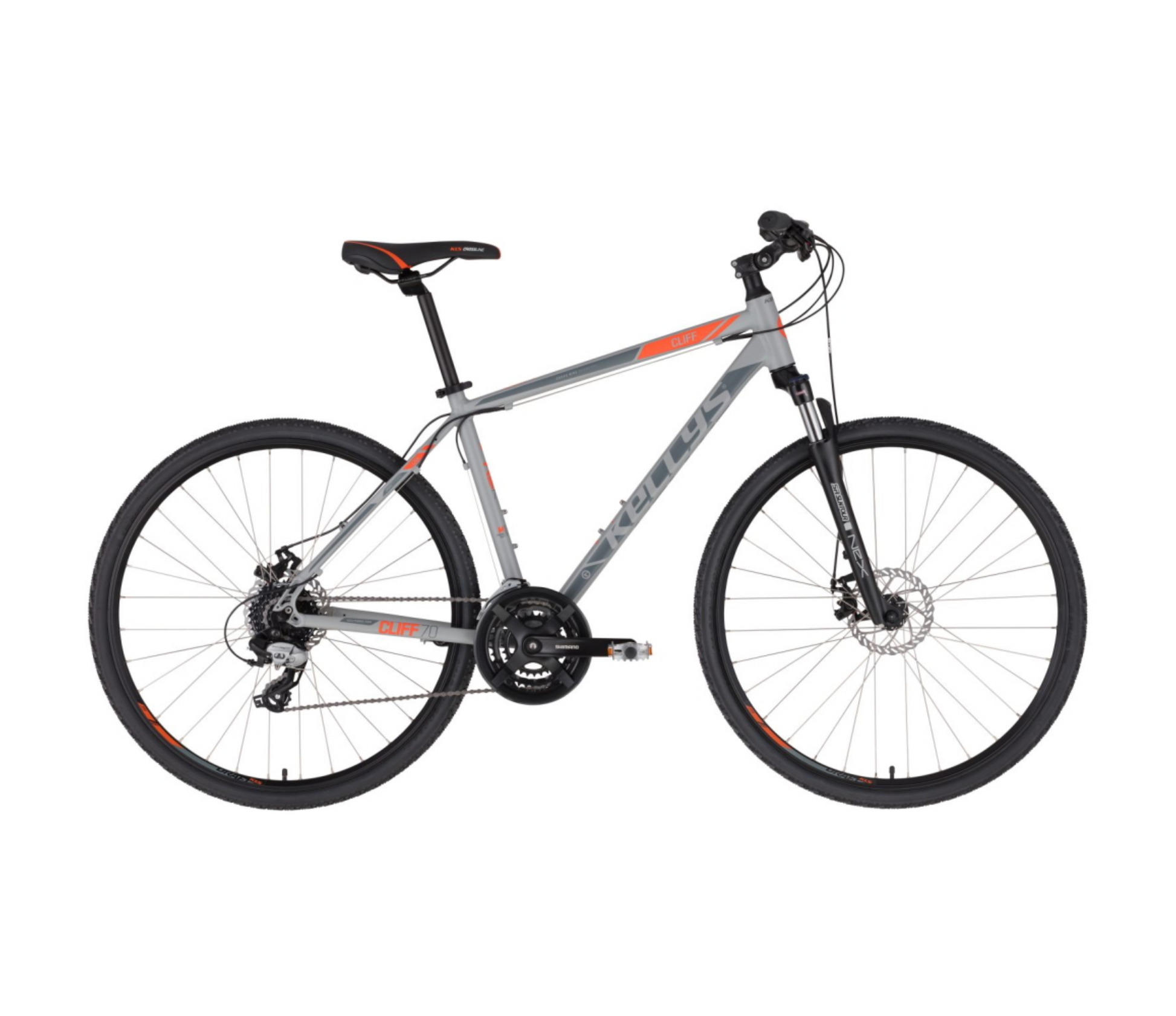

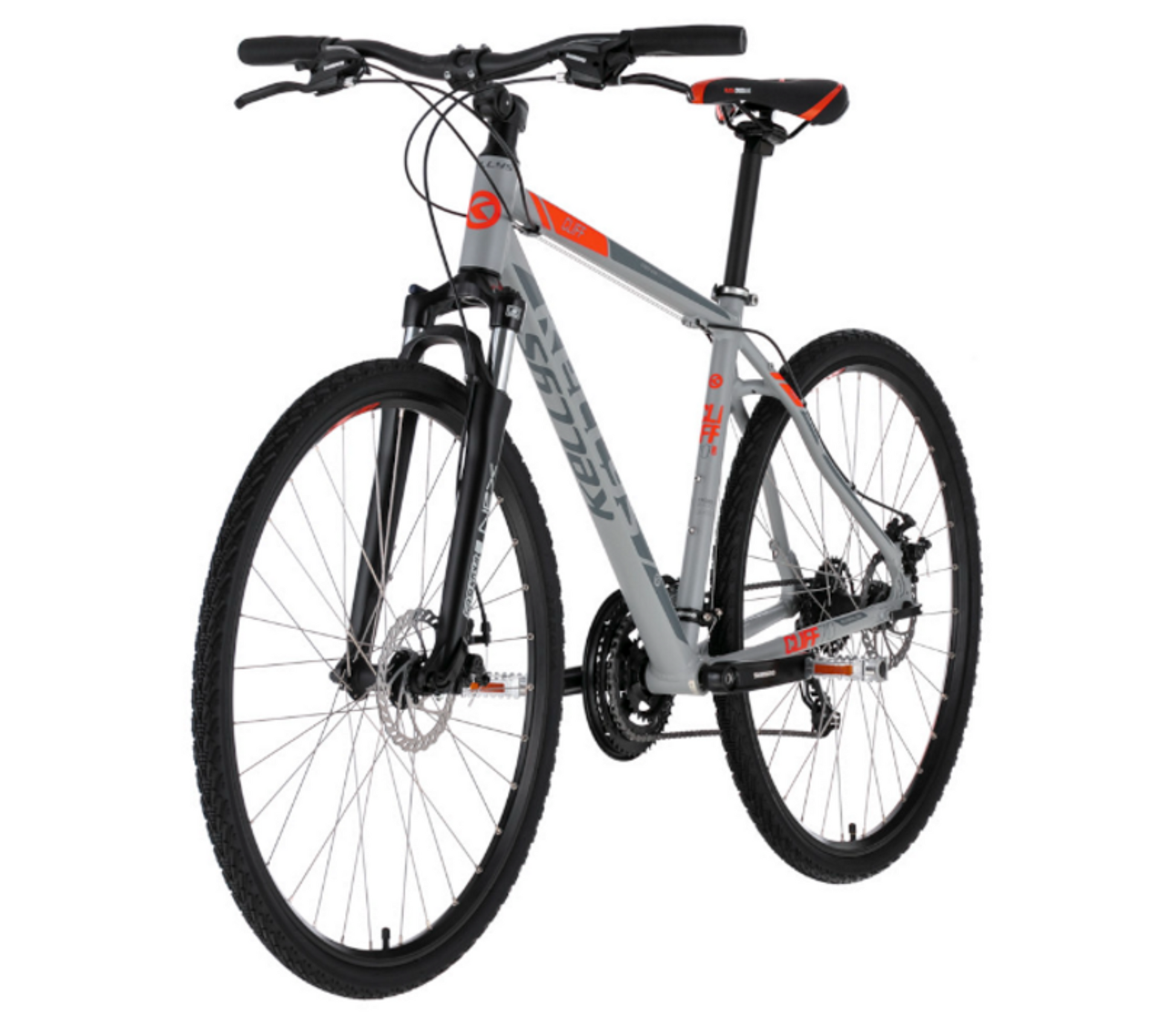

A Elegant bicycle that combines features of a road bike and a mountain bike and is suitable for riding over a variety of terrains.

SPECIFICATIONS

Frame set

 frame

KELLYS Crosslite

 fork

SR SUNTOUR NEX HLO DS, 63 mm, coil / Speed Lockout

 frame size

S / M / L / XL

Drive

 crankset

SHIMANO TY301 (48x38x28T) - length 170 mm (S), 175 mm (M - XL)

 rear derailleur

SHIMANO TX800 (direct mount)

front derailleur

SHIMANO TY710 (31.8 mm)

 shifters

SHIMANO ST-EF500-8 EZ-fire Plus

 speed

24

 cassette sprocket

SHIMANO CS-HG200-8 (12-32T)

 chain

KMC Z8 (114 links)

 b.b.parts

cartridge (122 mm)

 pedals

plastic

Brakes

 brakes

mechanical disc

 brake levers

SHIMANO ST-EF500-8 EZ-fire Plus

 brake rotors

160 mm front / 160 mm rear

Wheels

 hubs

KLS Firework Disc (32 holes)

 rims

KLS Draft Disc 622x21 (32 holes / eyelets)

 spokes

stainless steel

 tyres

INNOVA 44-622 (700x42C)

Cockpit

 head parts

semi-integrated

 stem

KLS CRX 70 adjustable - diam 28.6 mm / bar bore 31.8 mm / length 95 mm (S - L), 110 mm (XL)

 handlebar

KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm (S - M), 660 mm (L - XL)

 grips

KLS Token 2Density

 seat post

KALLOY - diam 27.2 mm / length 350 mm

 saddle

KLS CrossLine

FRAME SIZE

GEOMETRY
