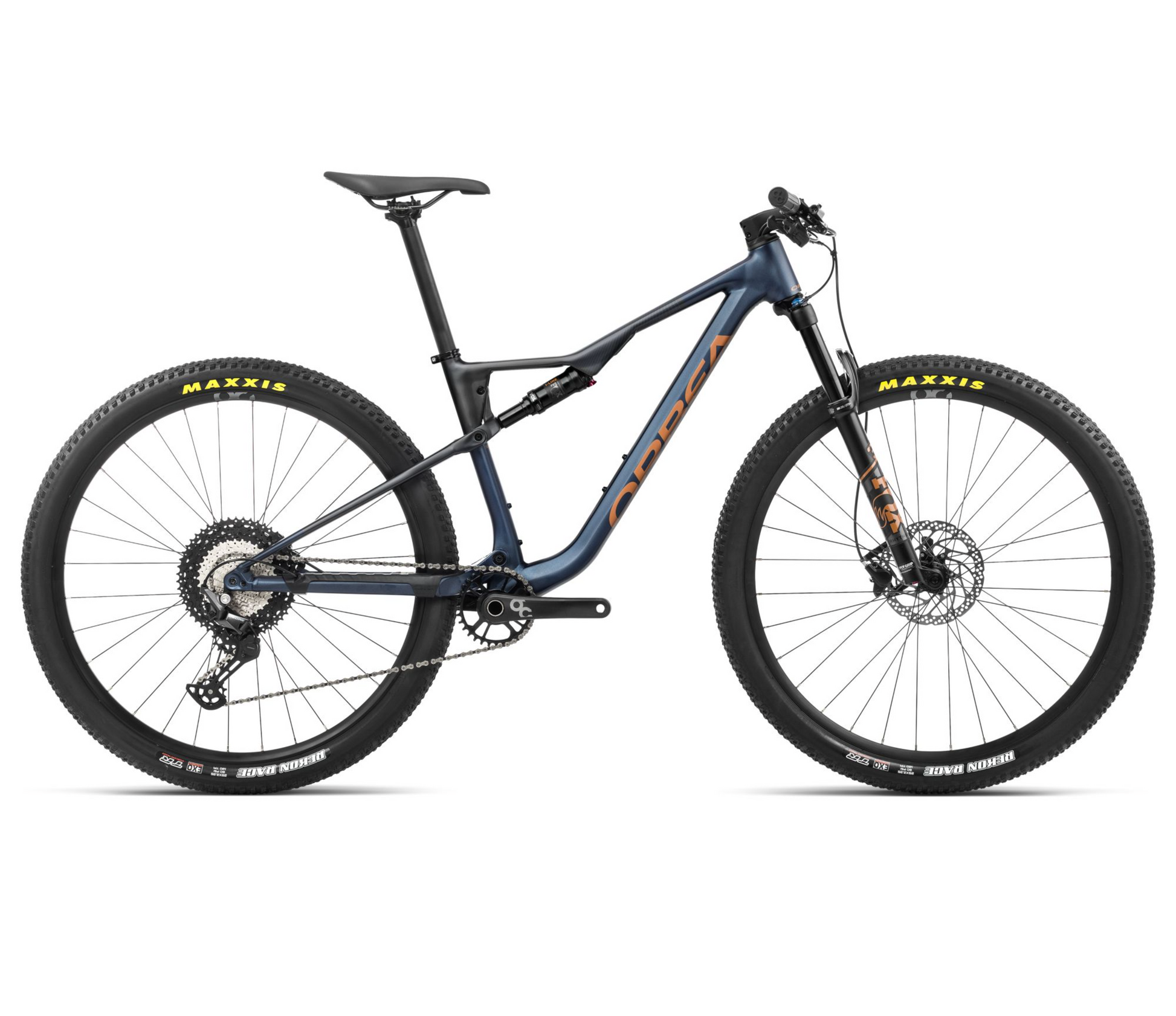

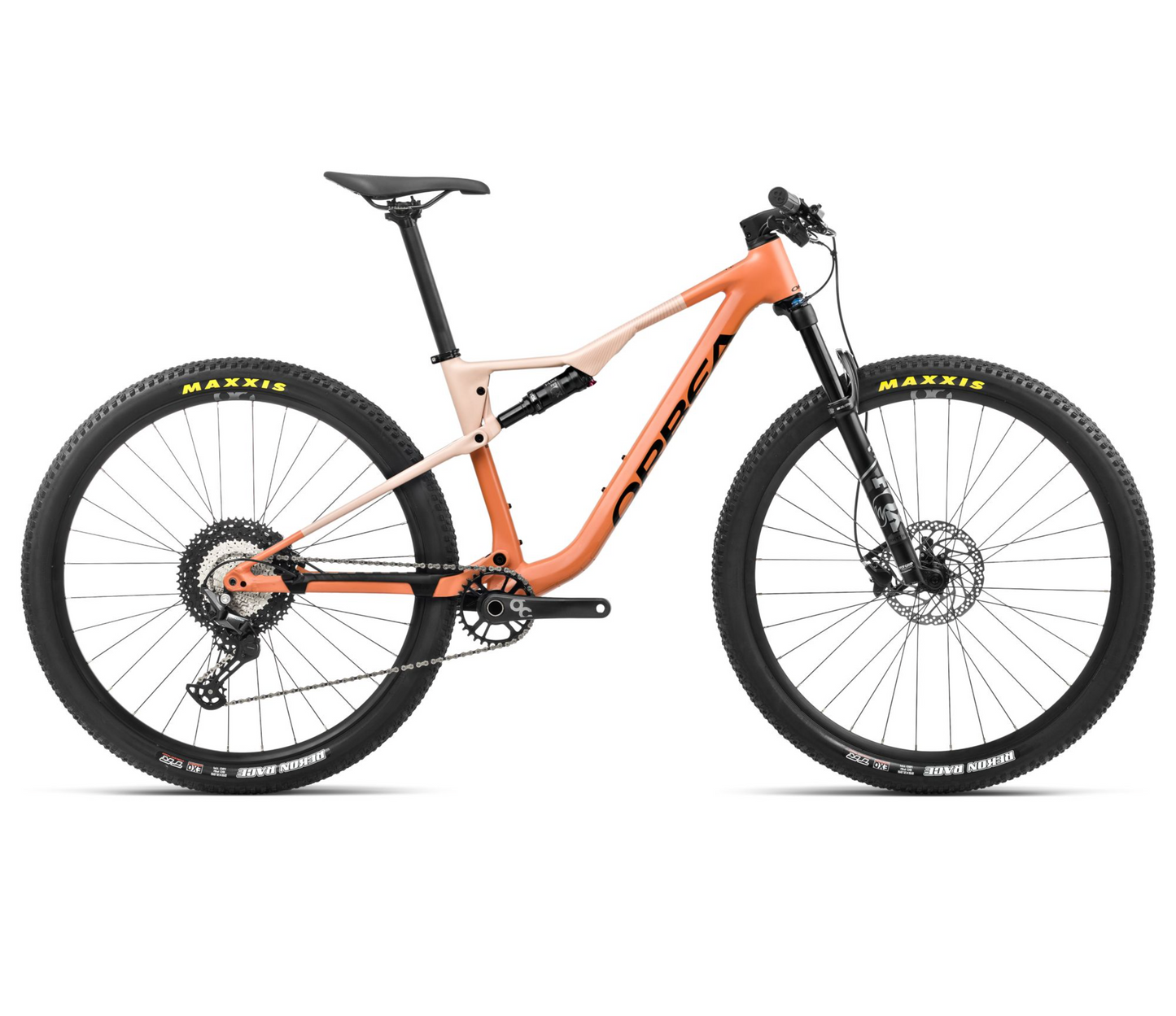

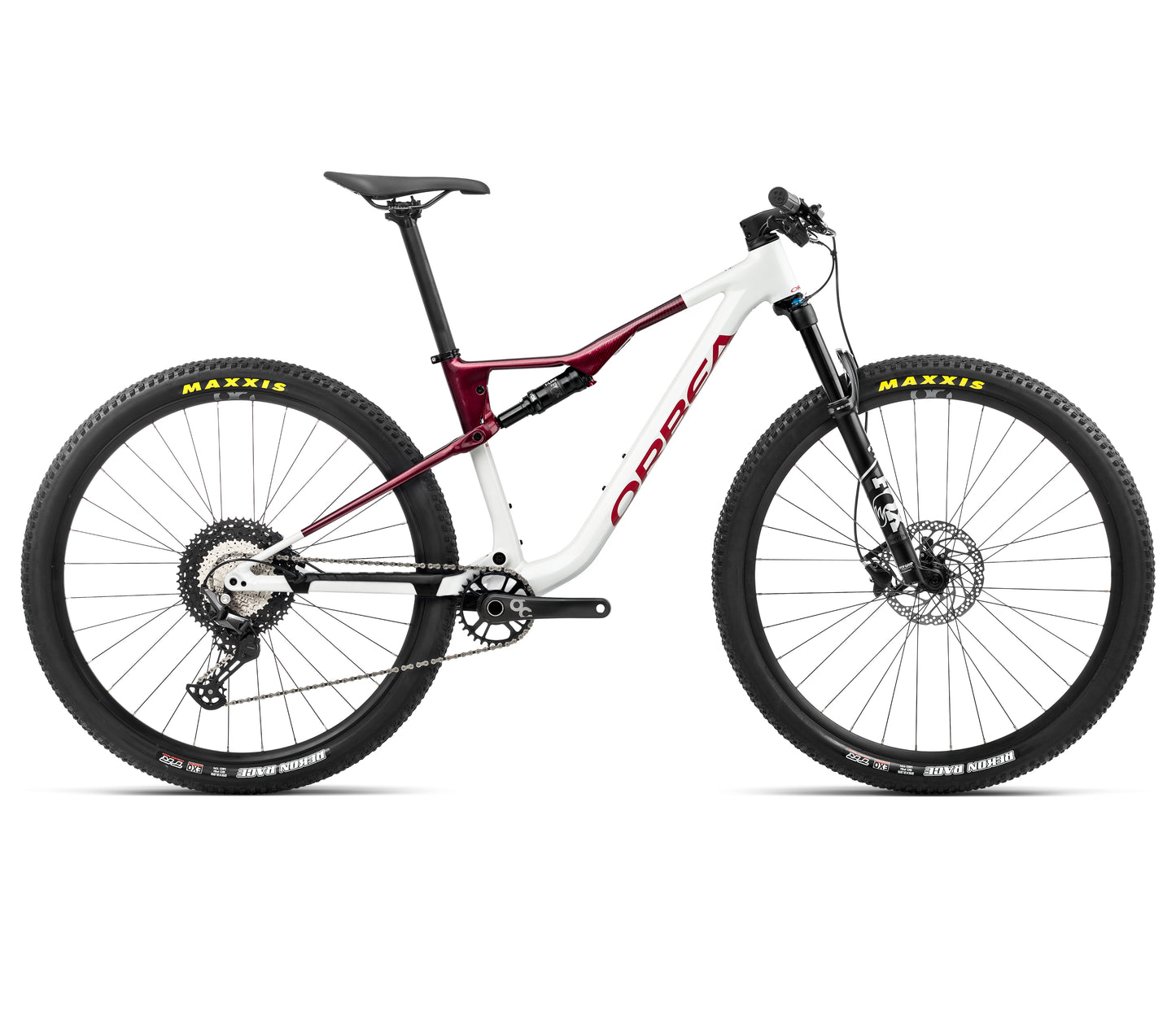

Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shock
Orbea (R230) OIZ H30
Orbea (R230) OIZ H30
Out of stock
TECHNOLOGY
BUILT TO FLY
Oiz is an uncompromised race machine that looks as good as it rides. Modern geometry, advanced construction, and efficient suspension mean more grip, and better control, inspiring you to attack on every climb and get right off the brakes on today's most challenging tracks.
RACE READY GEOMETRY
A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.
EFFICIENT SUSPENSION
Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.
TUNED RIGIDITY
For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff.
THE MOST DIRECT SHOCK LOCKOUT ROUTING
Our patented I-line is simply the sleekest, most direct, most integrated shock lock-out on the market. The shock lockout cable take the inside line all the way to the remote lever, meaning less cable, less dirt and less friction.
HIGH POLISH ALLOY
Our high polished alloy is simply the best aluminium frame you can buy, with the bonus of that carbon-look.
SPECIFICATIONS
Frameset
Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm
Fox 32 Float Rhythm 120 Remote Push to Lock QR15x110
FSA 1-1/2" Integrated Aluminium Cup
Drivetrain
Forged alloy, 32t, Boost
Shimano Deore M6100
Sun Race 11-51t 12-Speed
Shimano Deore M6100 SGS Shadow Plus
KMC X12
Cockpit
Alloy, 31.8mm, Flat, 740mm, Sweep 9
OC Mountain Performance MP21, -6º
Brakes
Shimano MT201 Hydraulic Disc
Wheels
Alloy, Tubeless, 25c, 32H
Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Components
Alloy, 31.6mm, Setback 0
Fortune QF-3091
OC Lock On
Fox Lockout, 2 Position, Dual
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
SIZE GUIDE
Size | Height (cm) |
---|---|
S | 155-170 |
M | 165-180 |
L | 178-190 |
XL | 185-198 |
*Estimated measurements
