SPECIFICATIONS

FRAMESET

Frame

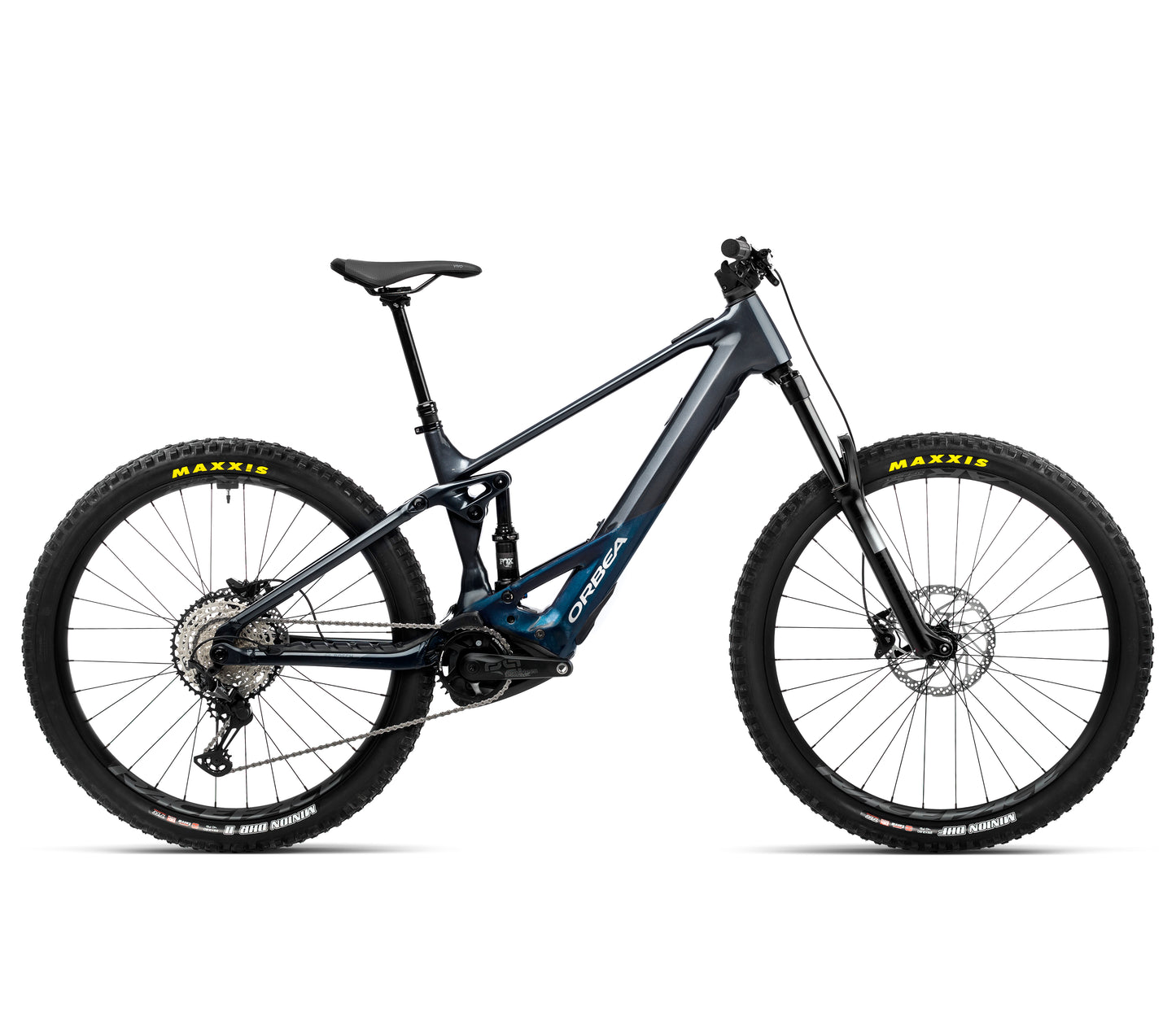

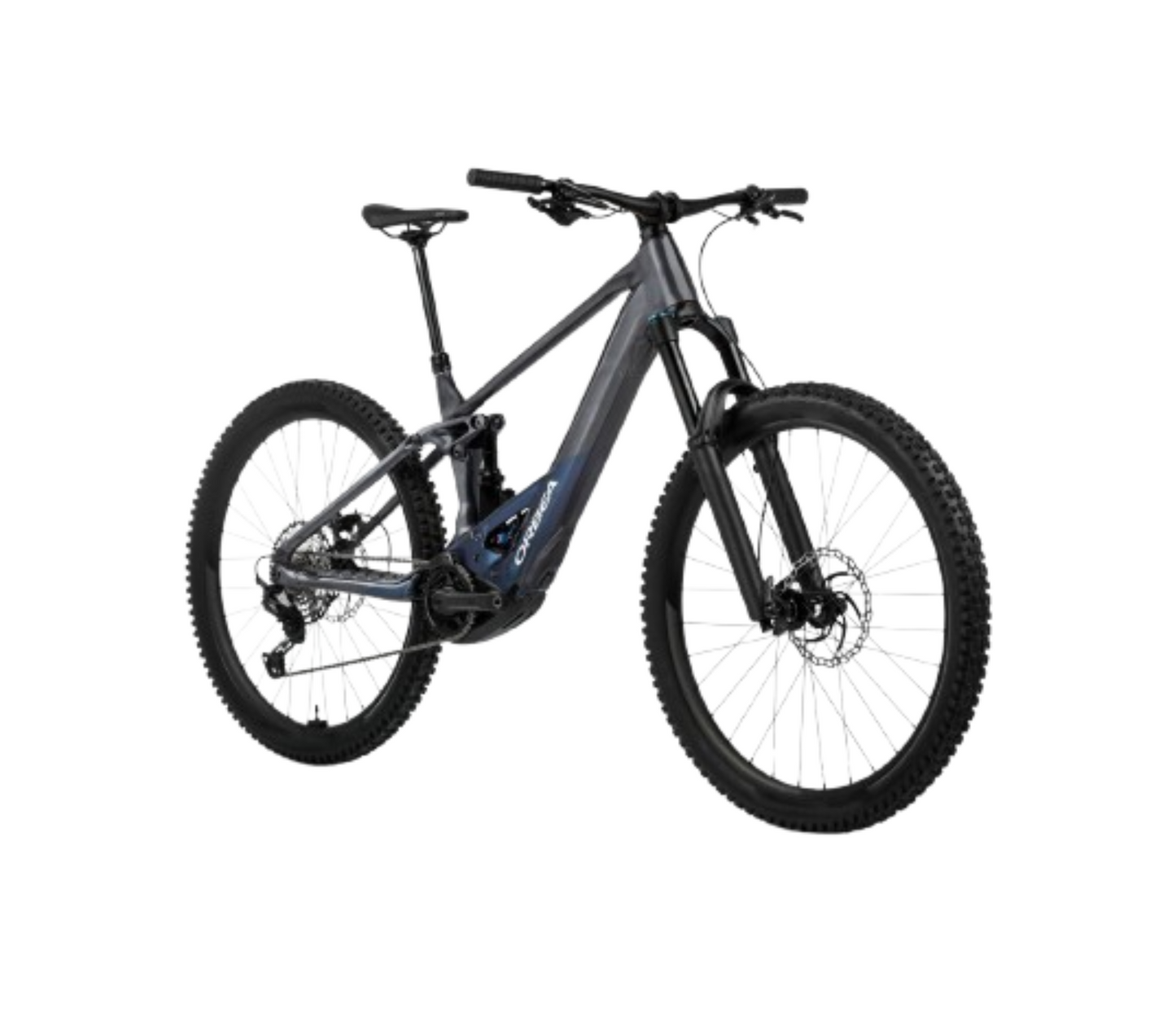

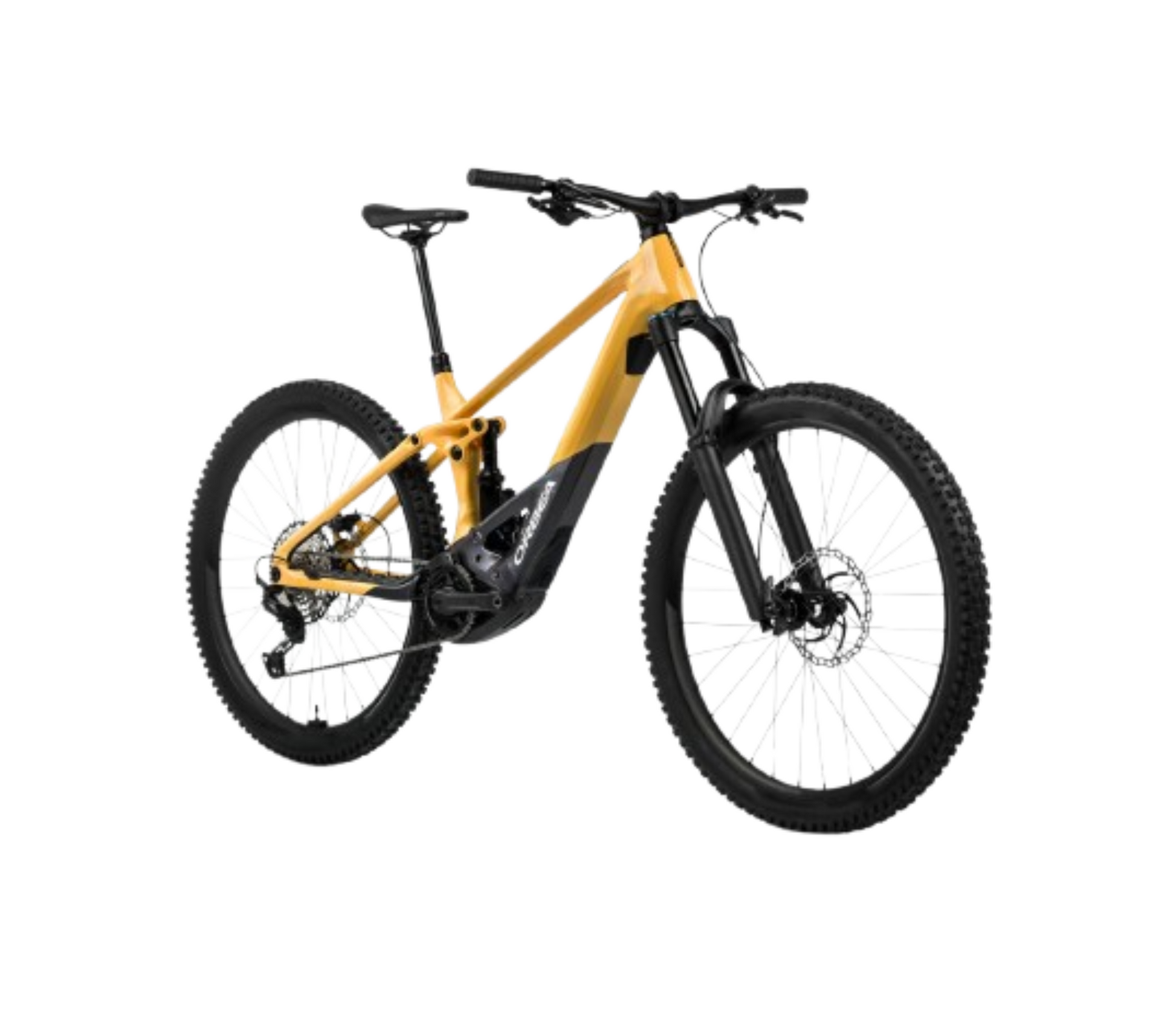

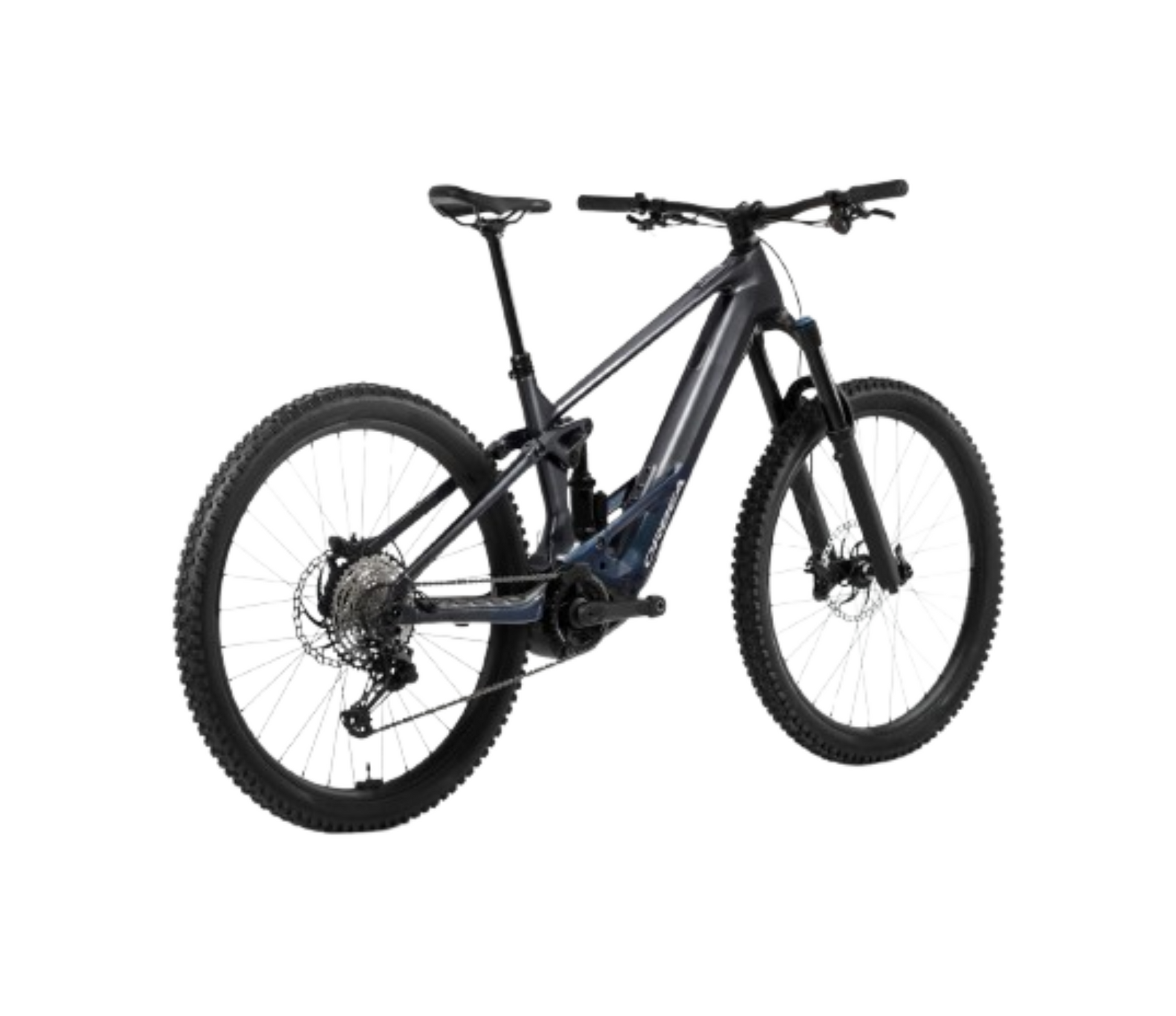

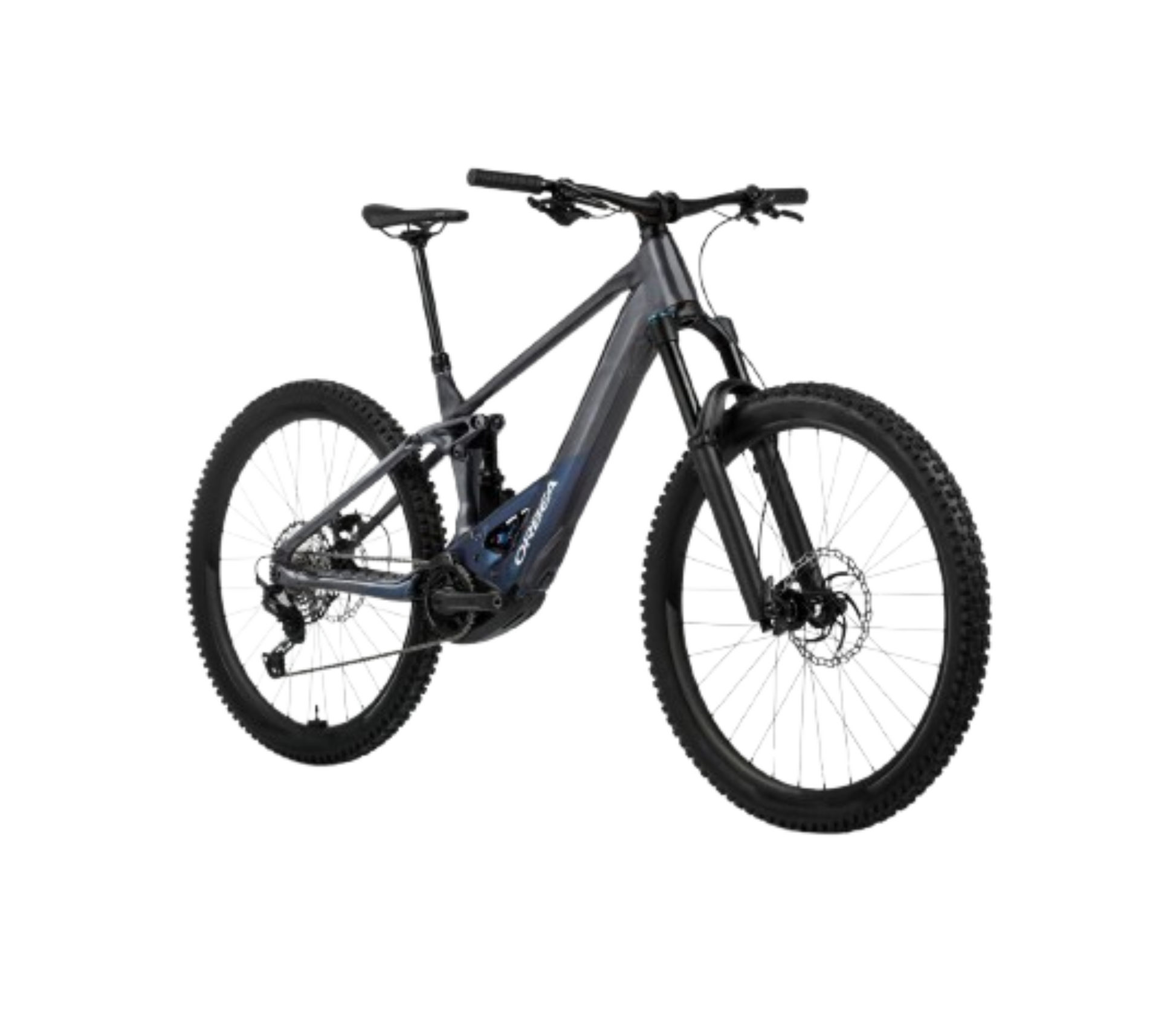

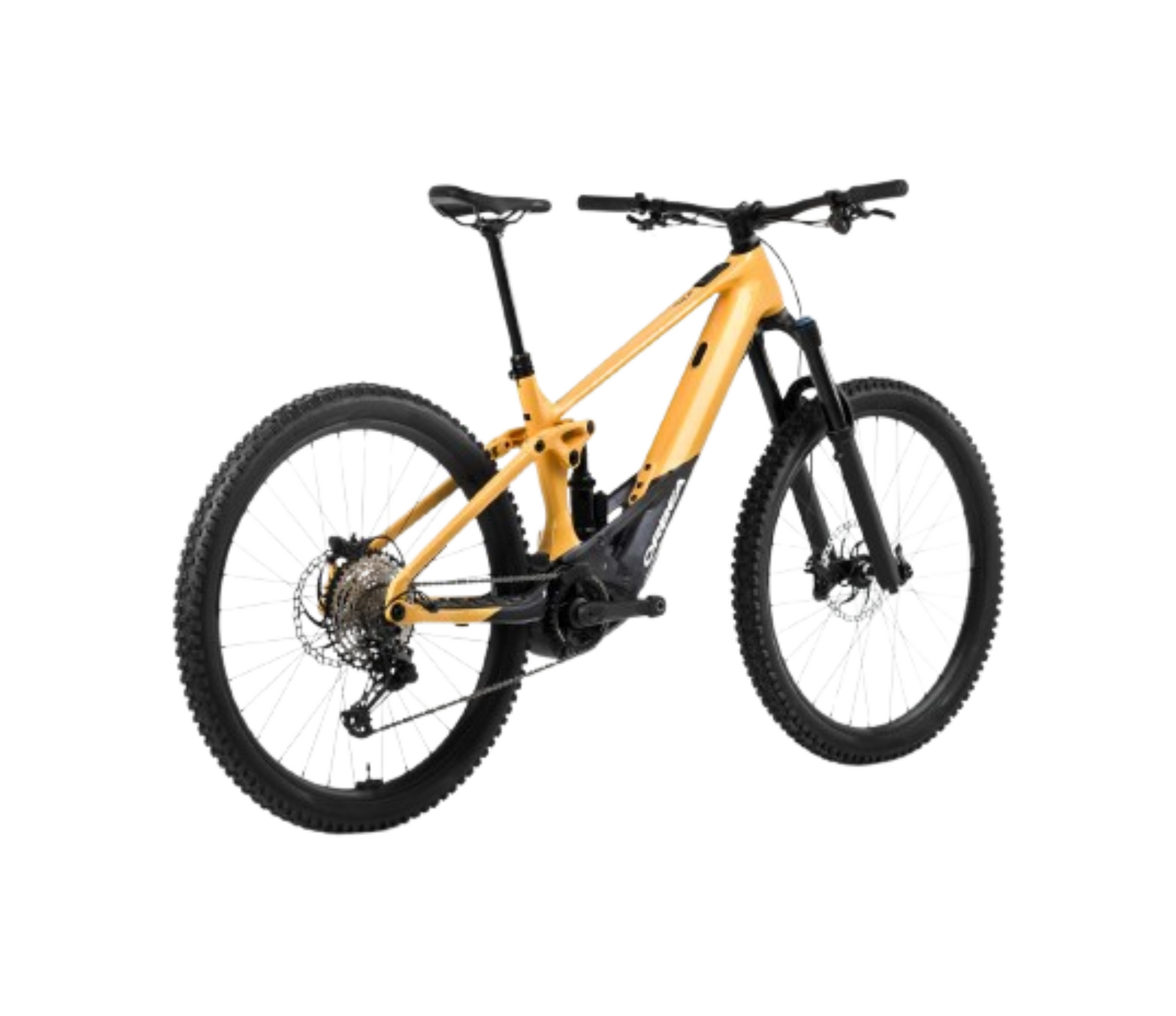

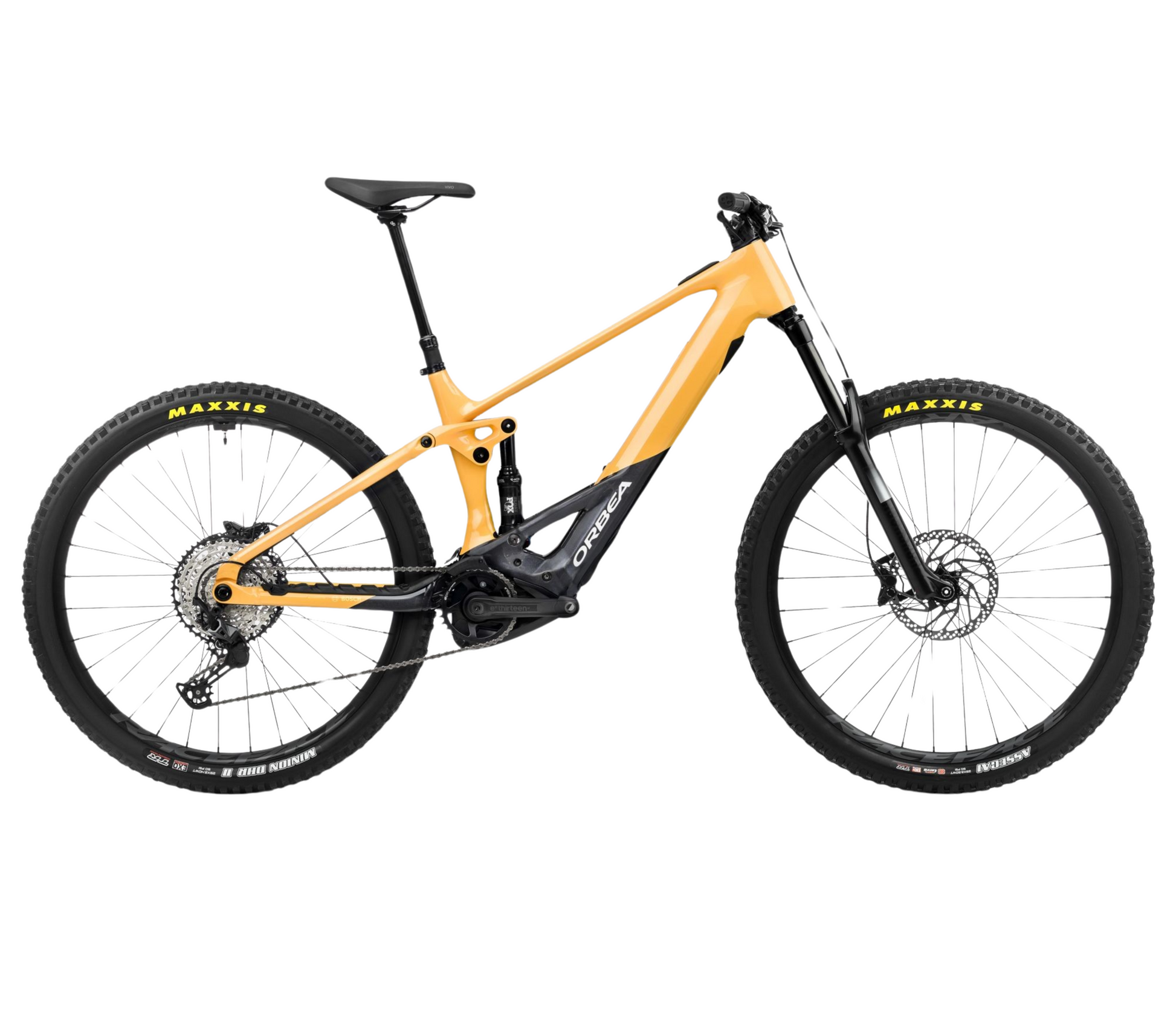

Orbea Wild Hydro 2023, 160mm travel, 29" wheels, Concentric Boost 12x148

Shock

Fox Float Performance Trunnion 2-Position Evol LV custom tune 205x65mm

Fork

RockShox 35 Silver TK Q15x110 Solo Air 160mm

Direction

FSA 1-1/2" Integrated Aluminium Cup

E-BIKE

Battery

BOSCH Powertube 625Wh Horizontal

RANGE EXTENDER

N/A

Motor

BOSCH Performance Line CX BDU3741

Display

BOSCH System Controller BCR3100

CHARGER

Bosch Charger 4A (110V) BPC3410

Remote

BOSCH Mini Remote BRC3300

DRIVETRAIN

Chainring

e*thirteen e*spec Direct Mount 34T Boost

Crank

e*thirteen Plus Alloy

Shifters

Shimano Deore M6100 I-Spec EV

Cassette

Shimano CS-M7100 10-51t 12-Speed

Rear Derailleur

Shimano SLX M7100 SGS Shadow Plus

Chain

Shimano M6100

Chainguide

e*thirteen Plus Bosch CX Gen4 32-38t

COCKPIT

Handlebar

OC Mountain Control MC30, Rise 20, Width 800

Stem

OC Mountain Control MC20, 0º

Computer Mount

OC Computer Mount CM-05, Garmin/Sigma

BRAKES

Brakes

Shimano MT420 Hydraulic Disc

WHEELS

Wheels

Race Face AR 30c Tubeless Ready

Tyres

Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR

Tyres

Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR

COMPONENTS

Seatpost

OC Mountain Control MC21, 31.6mm, Dropper

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Saddle

Selle Royal Vivo Sport Men 145 x 269mm

Grips

OC Lock On
