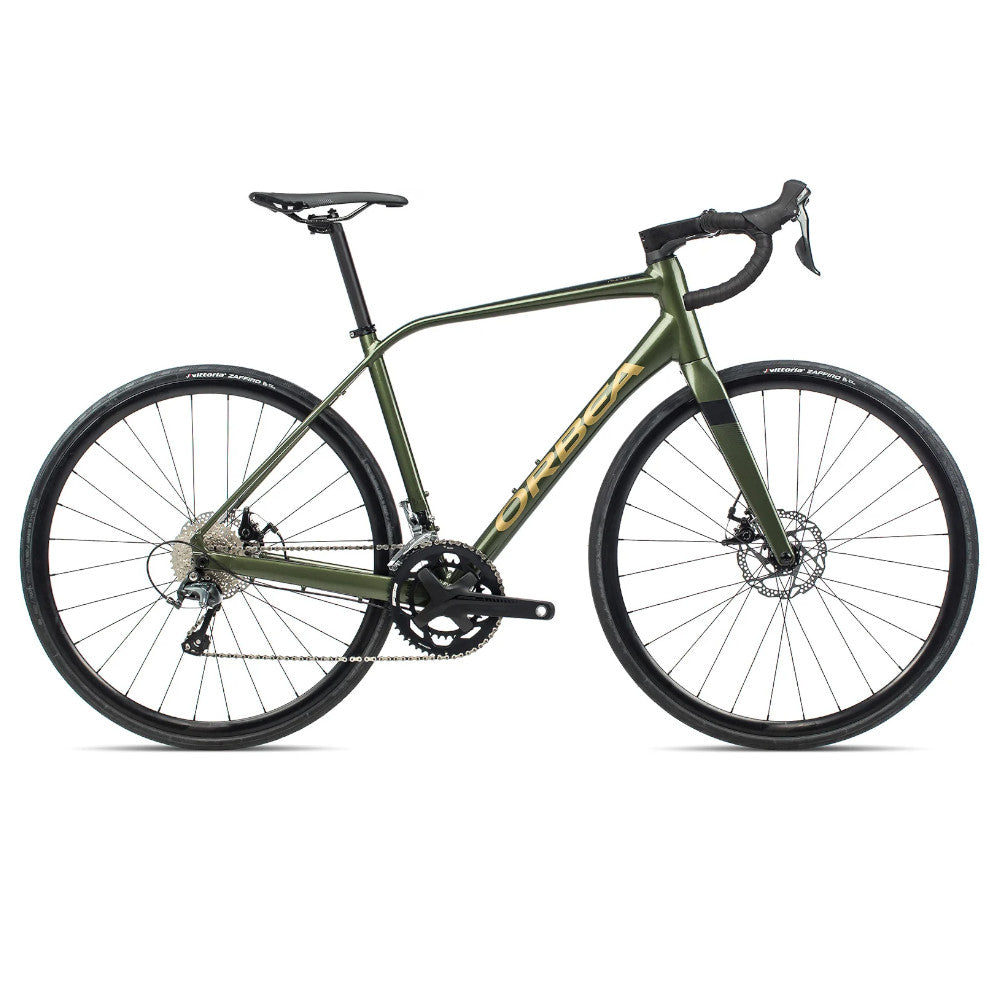

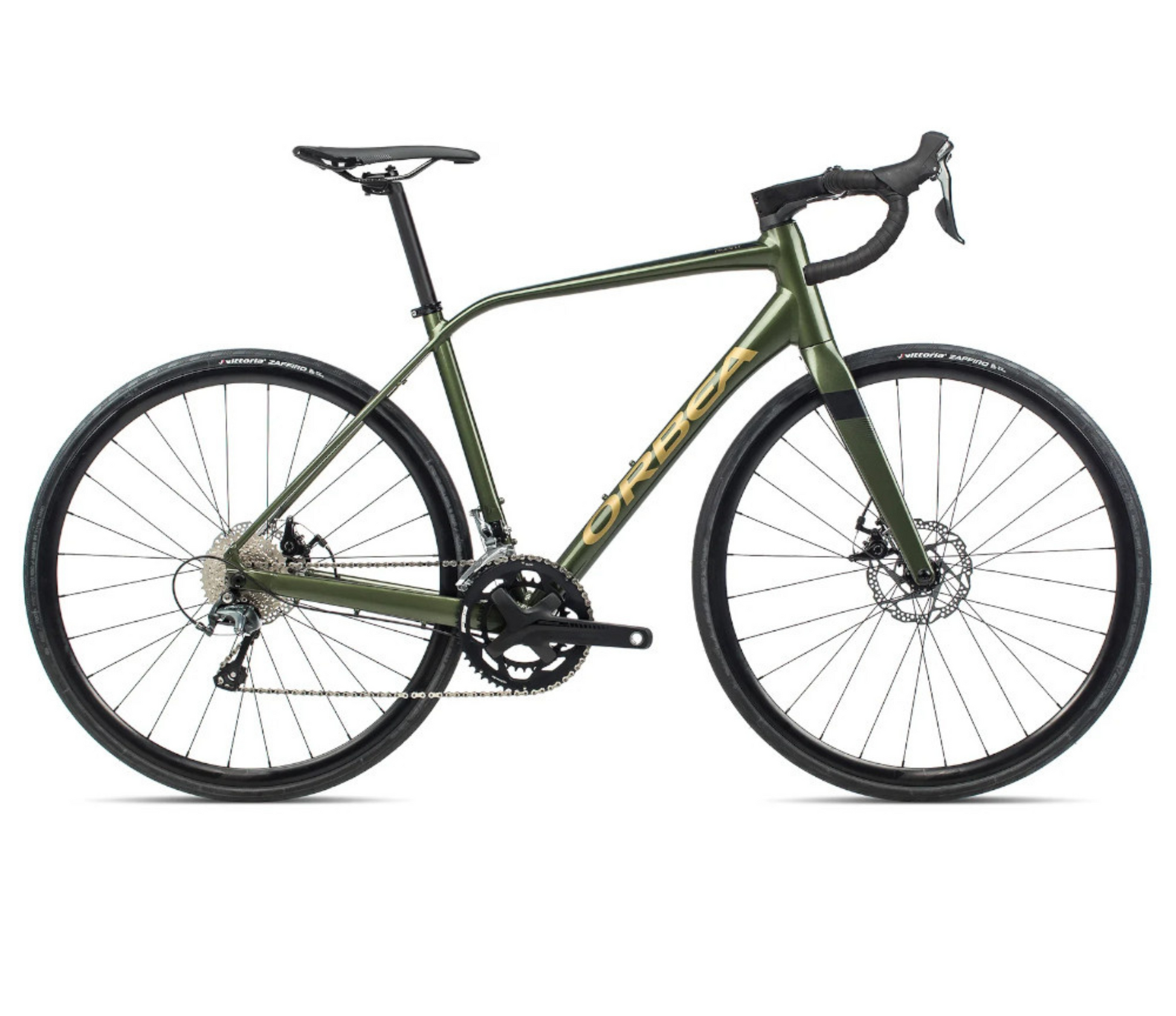

Orbea (M102) Avant H40
Orbea (M102) Avant H40
Low stock: 1 left
DESCRIPTION
Grab your Avant and fill your bottles before rolling out on your afternoon ride. No other machine can better help you enjoy the exhilaration of road cycling. The speed, freedom and the views offered by quiet roads are all included free with every Avant - and you love it.
FORK:
CARBON
MATERIAL:
ALUMINUM
ROUTING:
INTERNAL CABLE ROUTING
ICR Plus
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
High Polish
The new Avant receives the same level of design attention as our carbon frames - The tubes are butted and hydroformed with smooth, polished welds to match the dramatic look of the monocoque frame.
Avant Carbon Fork
The carbon layup and shaping of the Avant fork offers the best combination of elasticity, tire clearance and torsional stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility.
REGISTER FOR YOUR WARRANTY AND BENEFITS
LIFETIME WARRANTY
We offer a lifetime warranty on your bike frame once the legal warranty period has expired.
ACCIDENT POLICY
If your bike cracks or breaks due to external factors, we’ll provide you with a discount for a similar new frame.
EXCLUSIVE BENEFITS
You get access to exclusive contests and prizes and have priority access to products and promotions.
SPECIFICATIONS
- FRAME: Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
- FORK: Orbea carbon fork 2021, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
- HEADSET: Acros Alloy 1-1/2" Internal Cable Routing
- CRANKSET: FSA Omega Megaexo 34x50t
- SHIFTERS: Shimano Tiagra ST-4700
- CASSETTE: Sun Race CSMS1 11-34t 10-Speed
- REAR DERAILLEUR: Shimano Tiagra 4700 GS
- FRONT DERAILLEUR: Shimano Tiagra 4700
- CHAIN: KMC X10
- HANDLEBAR: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
- STEM: OC Road Performance RP21, -6º
- BRAKES: Jagwire RideRever Mechanical Disc
- WHEELS: Alloy, Tubeless, 700c, 19c, 28H
- TYRES: Vittoria Zafiro V Rigid bead 700x28c
- FRONT WHEEL AXLE: Orbea Thru Axle 12x100mm M12x2 P1 Solid
- REAR WHEEL AXLE: Orbea Thru Axle 12x142mm M12x2 P1 Solid
- SEATPOST: Alloy, 27.2mm, Setback 20
- SADDLE: Fizik Aliante R5
SIZE GUIDE
Size | Height (cm) |
47 | 155-160 |
49 | 160-166 |
51 | 167-172 |
53 | 173-179 |
55 | 180-185 |
57 | 186-191 |
60 | 192-207 |
